Window Systems · Thermal Break
Casement System — Thermal Break
For projecting windows, with rubber corners and polyamide technology.
Request a quote
Window Systems
Casement System — 5 cm & 10 cm
European casement system with polyamide thermal break, opens to 180°.
Opening types / designs
- Single
- Double
- Tilt
- Design service
- Site measurement
- Installation
Description
Available in two widths, 5 cm and 10 cm, this casement system is designed, tested and licensed by a European company. Natural rubber gaskets inside ensure a complete seal, while polyamide thermal-break technology delivers high-quality acoustic insulation and effective protection against air, water and heat.
Features
- Opening: single, double or tilt
- Concealed or visible hinges
- Multiple sizes
- Natural rubber gaskets

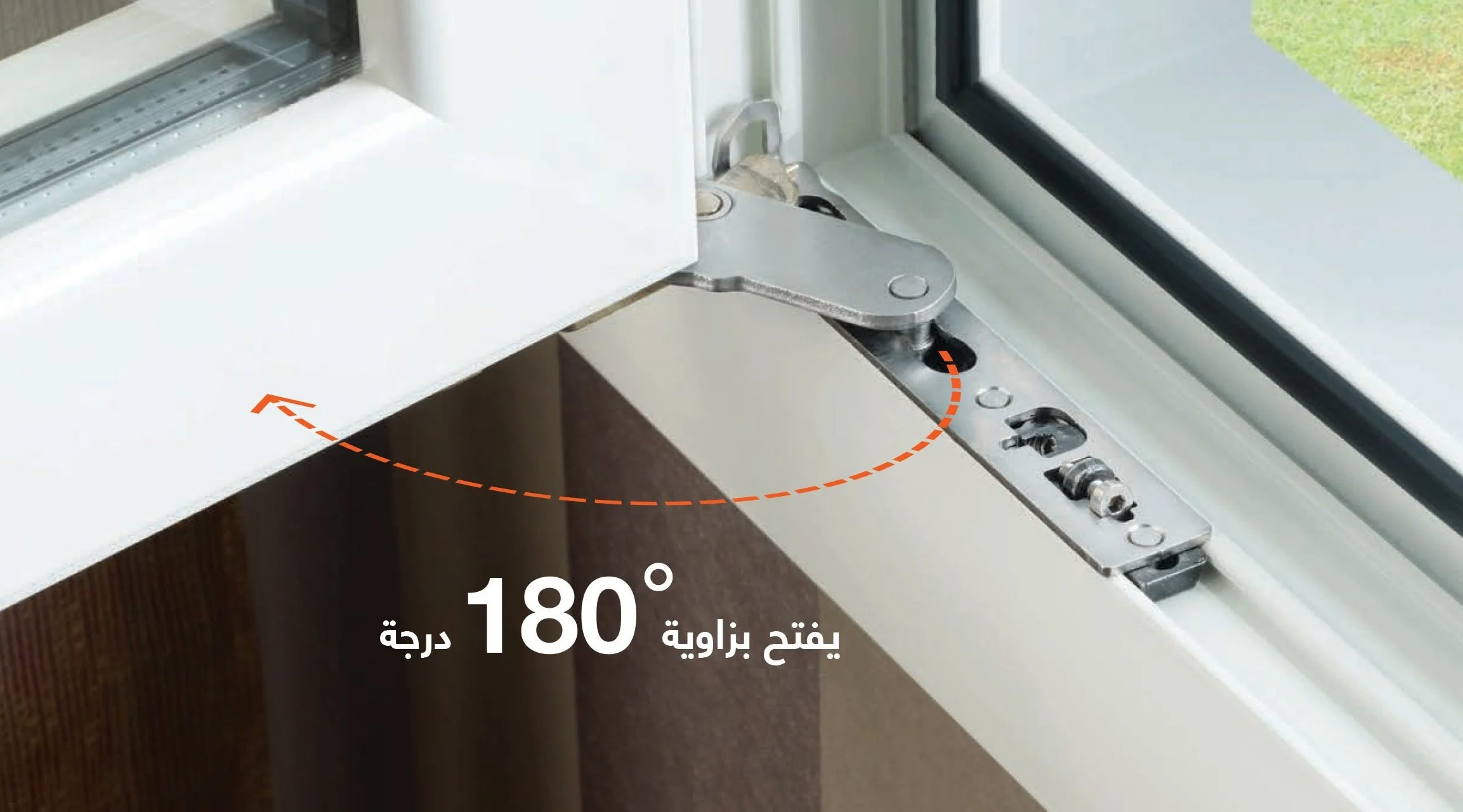

- Opens to 180°

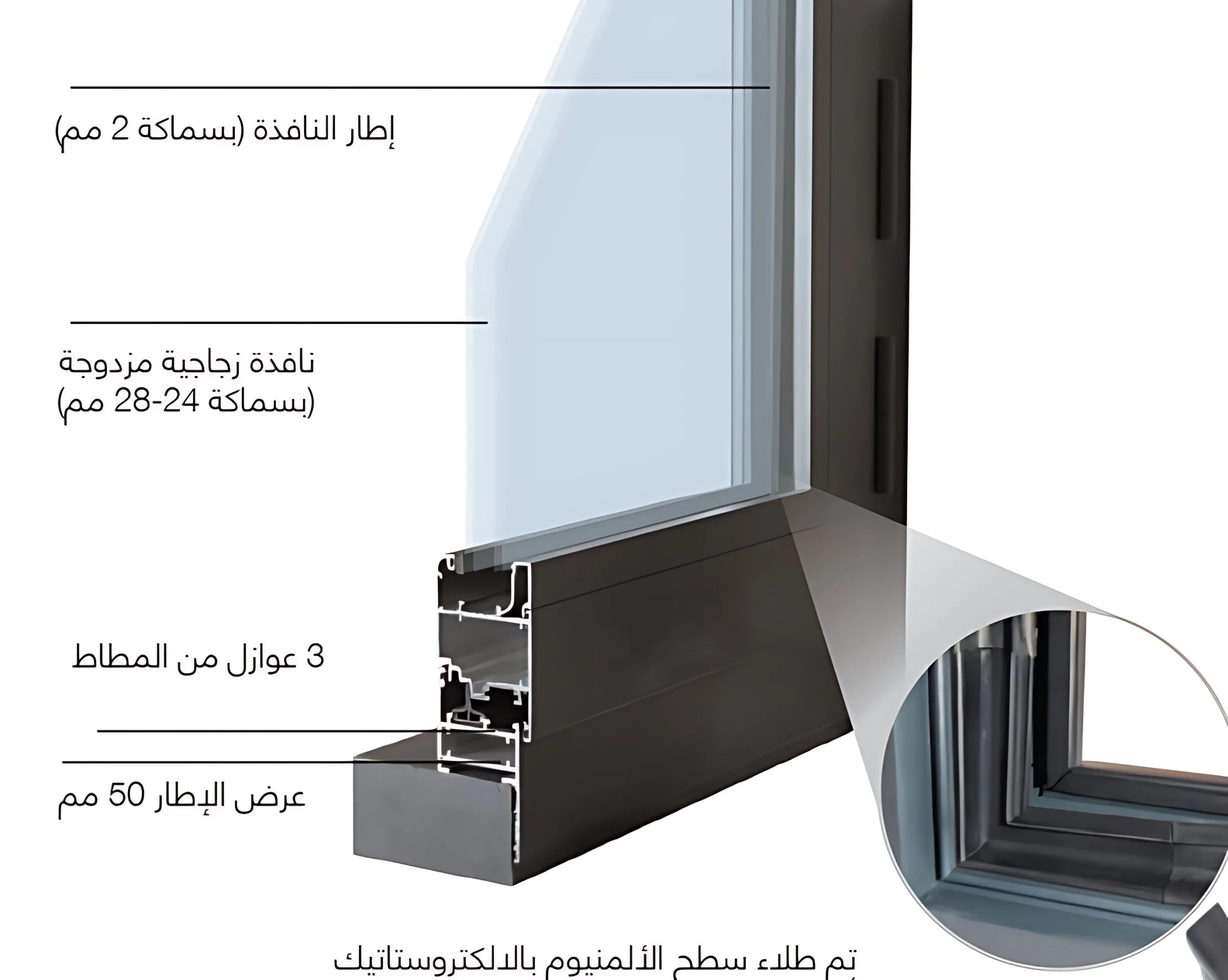

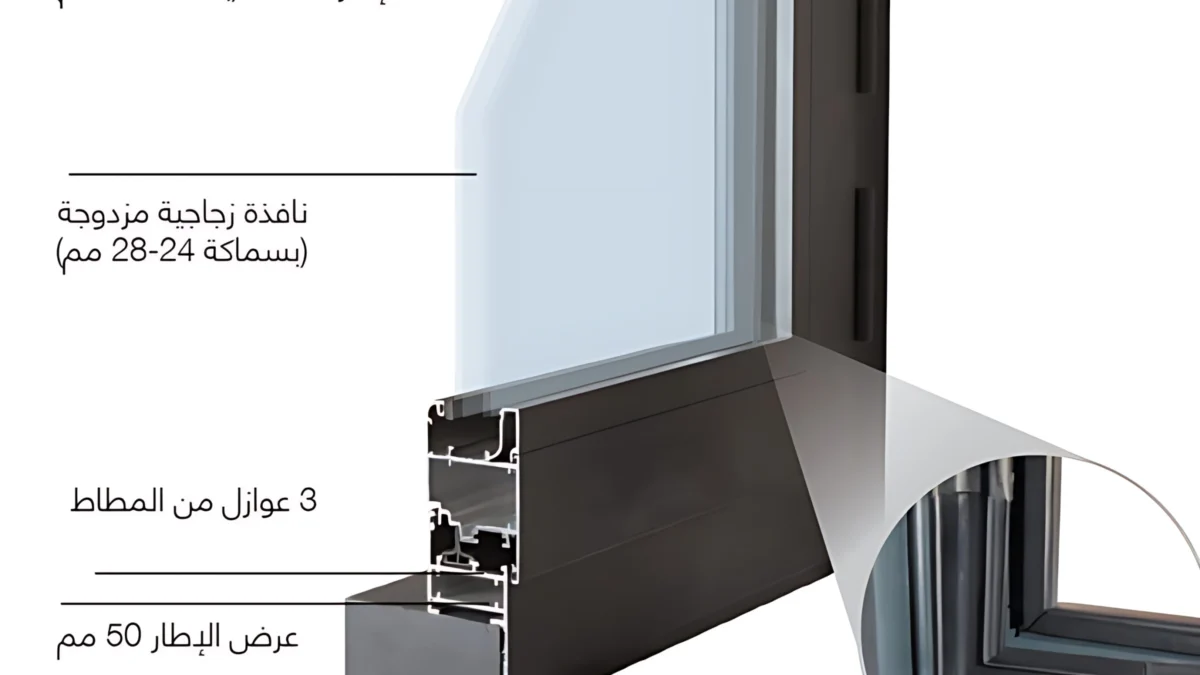

Cross-section
Profile details
- 1Window frame (2 mm thick)
- 2Double-glazed unit (24–28 mm)
- 33 rubber gaskets
- 4Frame width 50 mm
- 5Aluminium surface powder-coated or anodised
